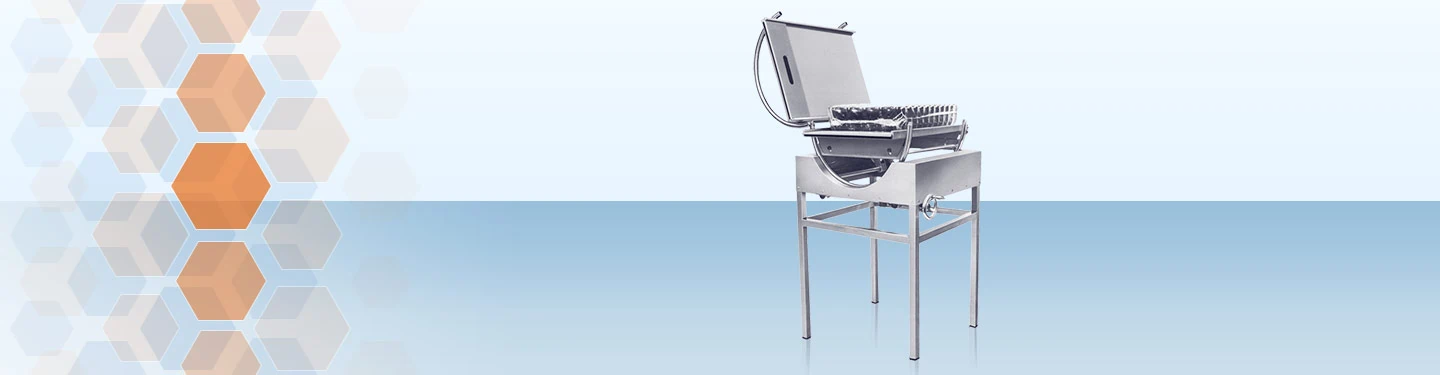

Sonation Turntable ASF 15 opened up

Turning station ASF 15

With the ASF15 turning table, shrink-wrapped bottles can be freed from their packaging without any effort. Operation is extremely simple: The bottle pack is inserted into the rotor. The foil is cut with a cross cut and the foil is folded over the edges. The rotor is then closed and rotated 180° with the bottle pack. After that, the foil can simply be removed and the bottles pushed out for further use.

Configuration

Benefits

Freeing from packaging material
With the ASF15 turning table, shrink-wrapped bottles can be freed from their packaging without any effort.
Easy operation
Due to the center of gravity bearing, the turning table can be operated without effort.
Few actions per turning operation
No locking of the rotor necessary during turning
Two-way operation
The rotor does not have to be turned back to its original position to process another bottle pack.
Easy attachment to existing rotary tables possible
All mechanical construction
No connection to the mains necessary.

Technical data

Material
Stainless steel / plastic
Package sizes
Up to 500x150x400mm (WxHxD) - Others on request
Working or extension height
According to customer requirement
